F1 M650BBM

Specifications
Support

Model No	F1M650BBM
Power Supply (PSU)	650W 80+ Bronze
Product Color	Black
Structure Dimension	360x215x430mm

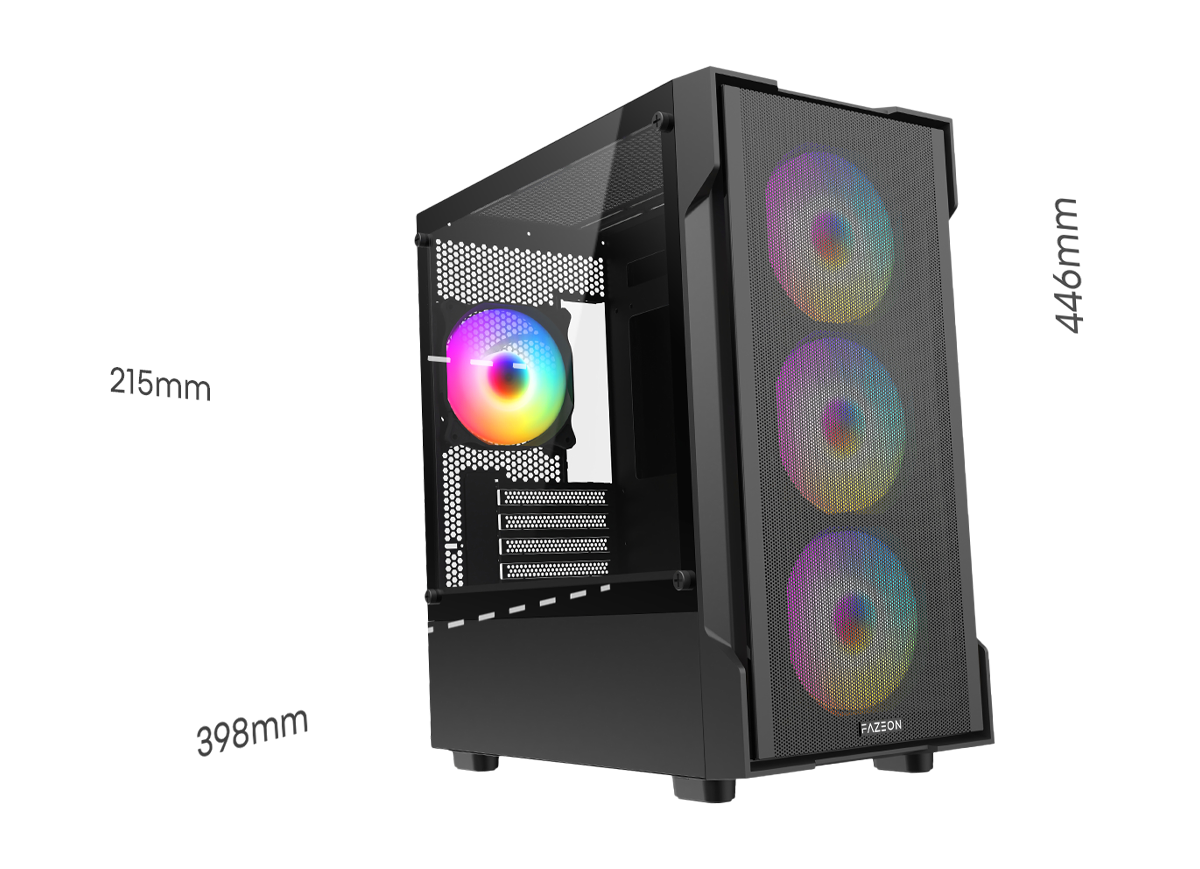

PC Case Dimension	398x215x446mm
Carton Box Dimension	458x265x485mm
Chassis Thickness	0.6mm SPCC
Front Panel Material	ABS + Metal Mesh

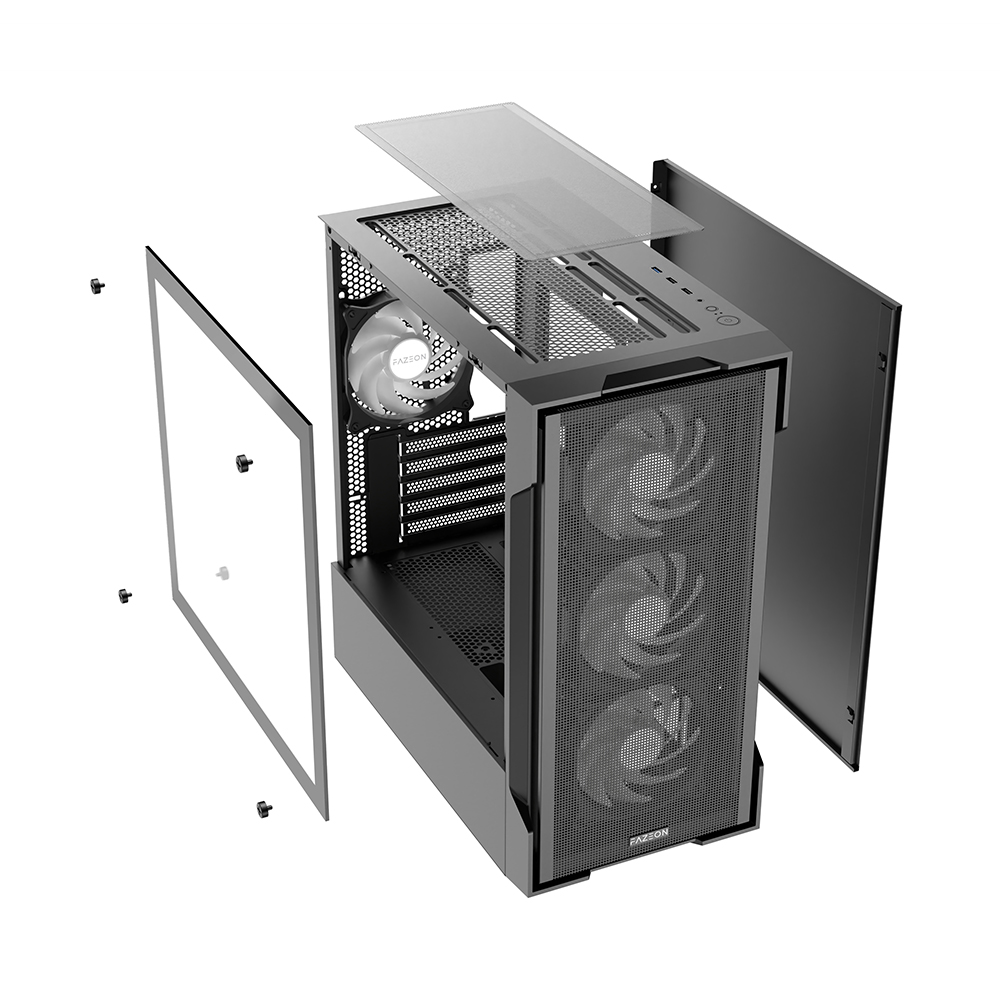

Left Panel Material	Half Size Tempered Glass With 4 Screws
Right Panel Material	Metal SPCC With 2 Screws
Top Panel Material	Metal SPCC
I/O Ports	HD Audio, USB 2.0 x2, USB 3.0 x1

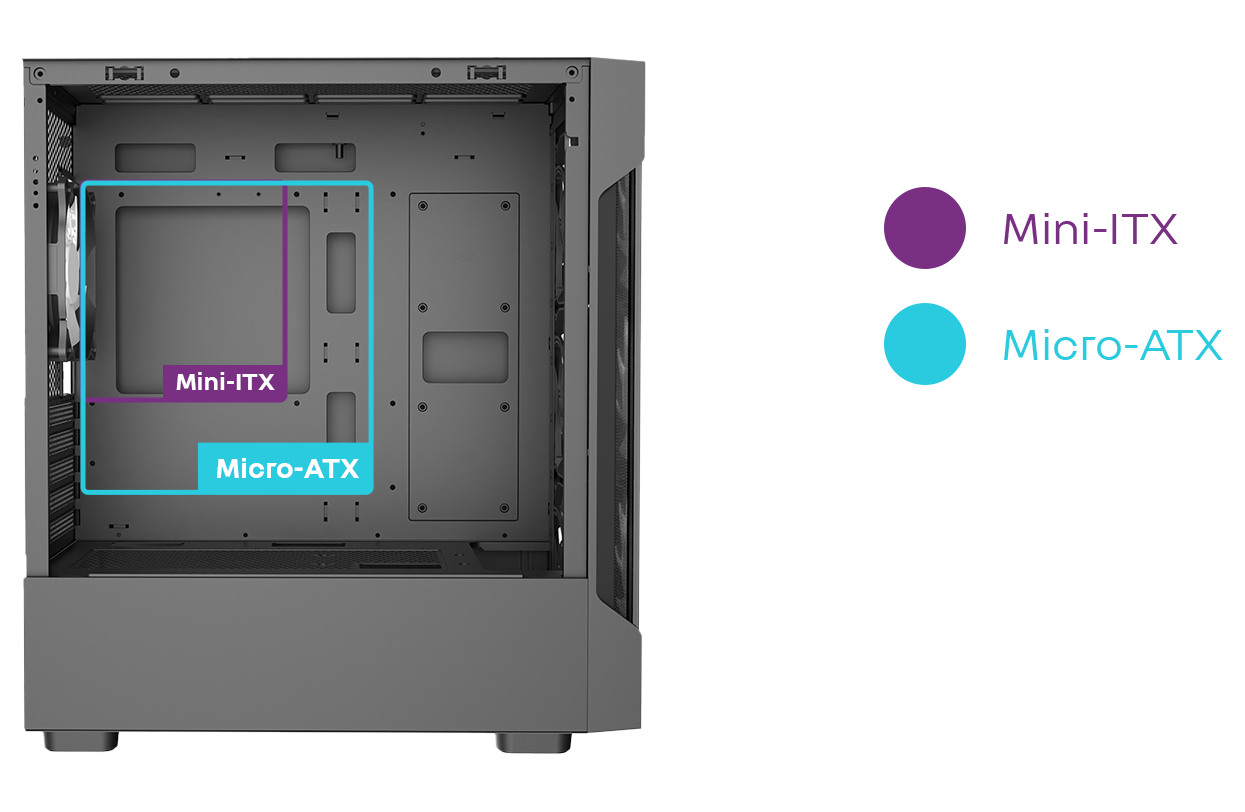

Motherboard Support	Micro-ATX, Mini-ITX
Max. CPU Height	165mm
Max. GPU Lenght	340mm
Pre-installed Fans	Front: 3x 120mm RAINBOW (BLACK), Rear: 1x 120mm RAINBOW (BLACK)
Fan Support	Bottom: 2 X 120mm, Rear:1 x 120mm, Top: 2 x 120mm / 2 x 140 mm, Top: 3 X 120mm / 2 X 140mm
Radiator Support	Front: 240/280mm, Top: 240/280mm
HDD/SSD	3.5'' HDD x2 + 2.5'' SSD x2
Expansion Slots	5

F1

PC Case

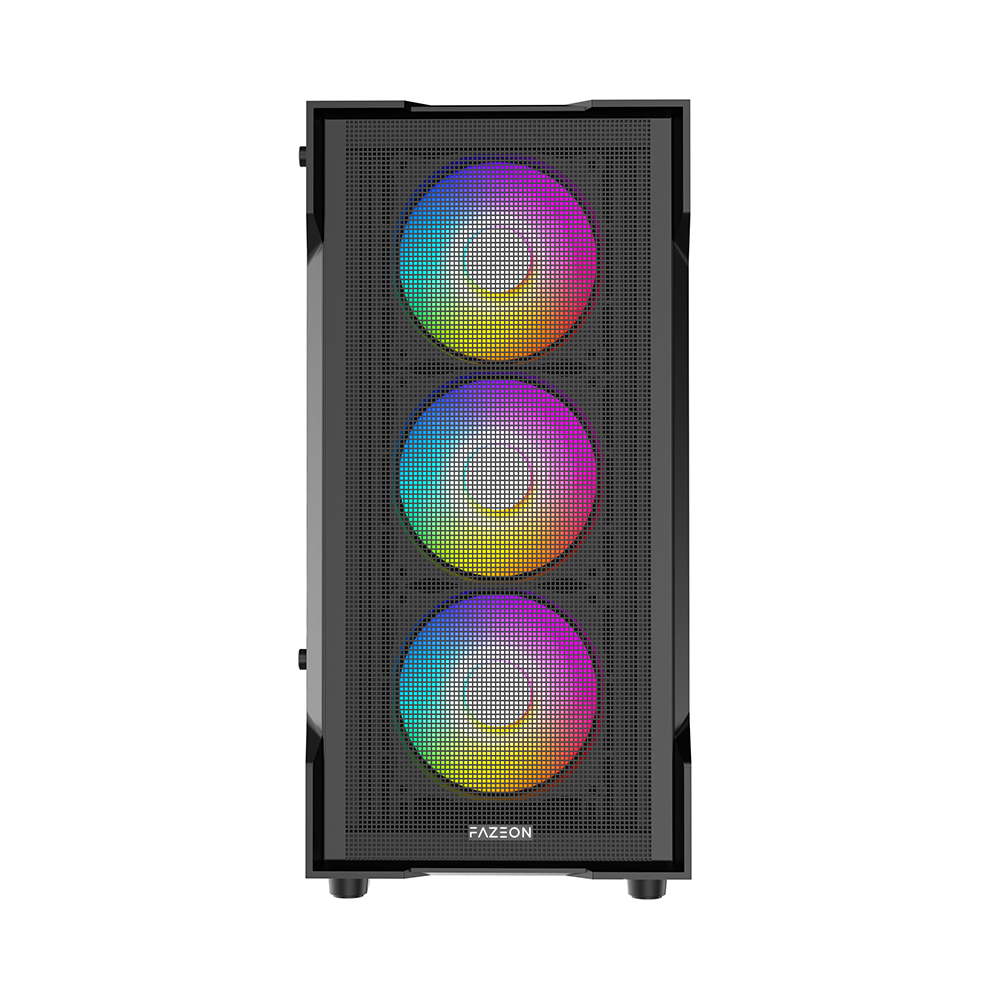

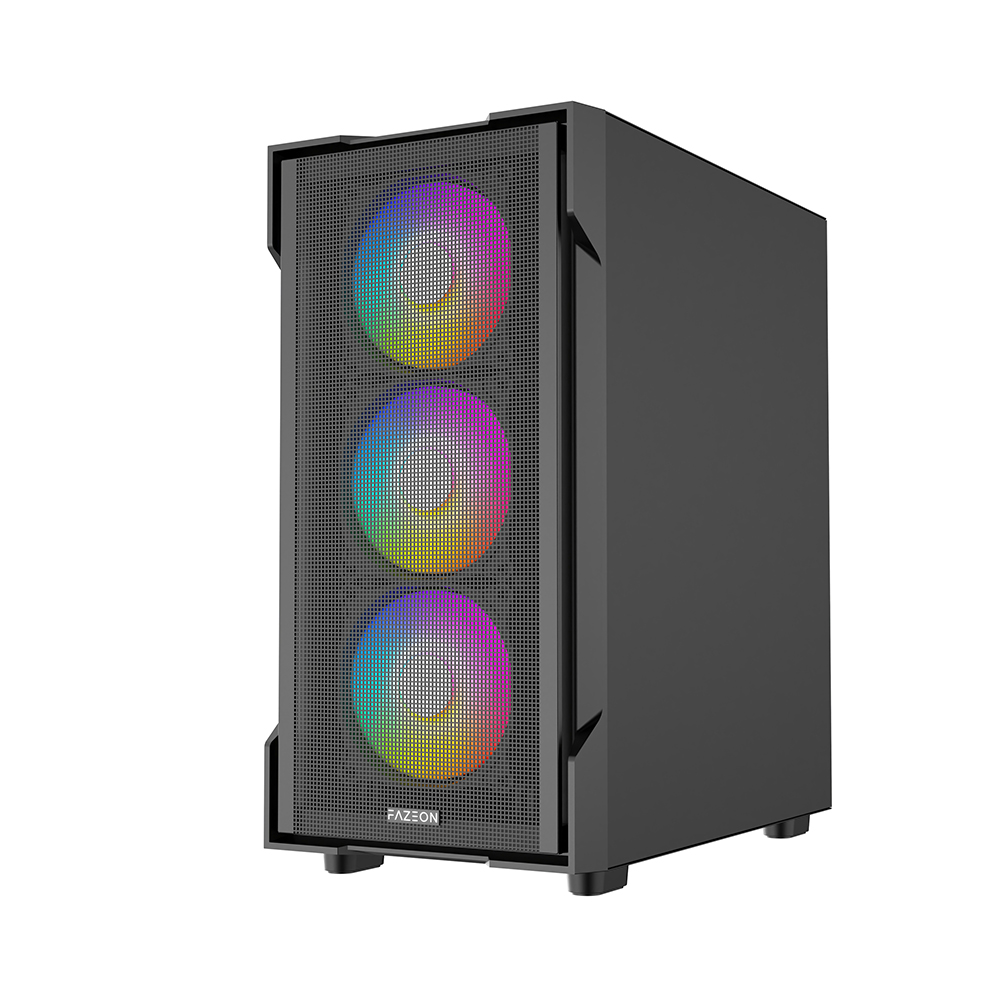

Optimized Airflow – Mesh front panel combined with 4x 120mm fans ensures efficient cooling across the system.

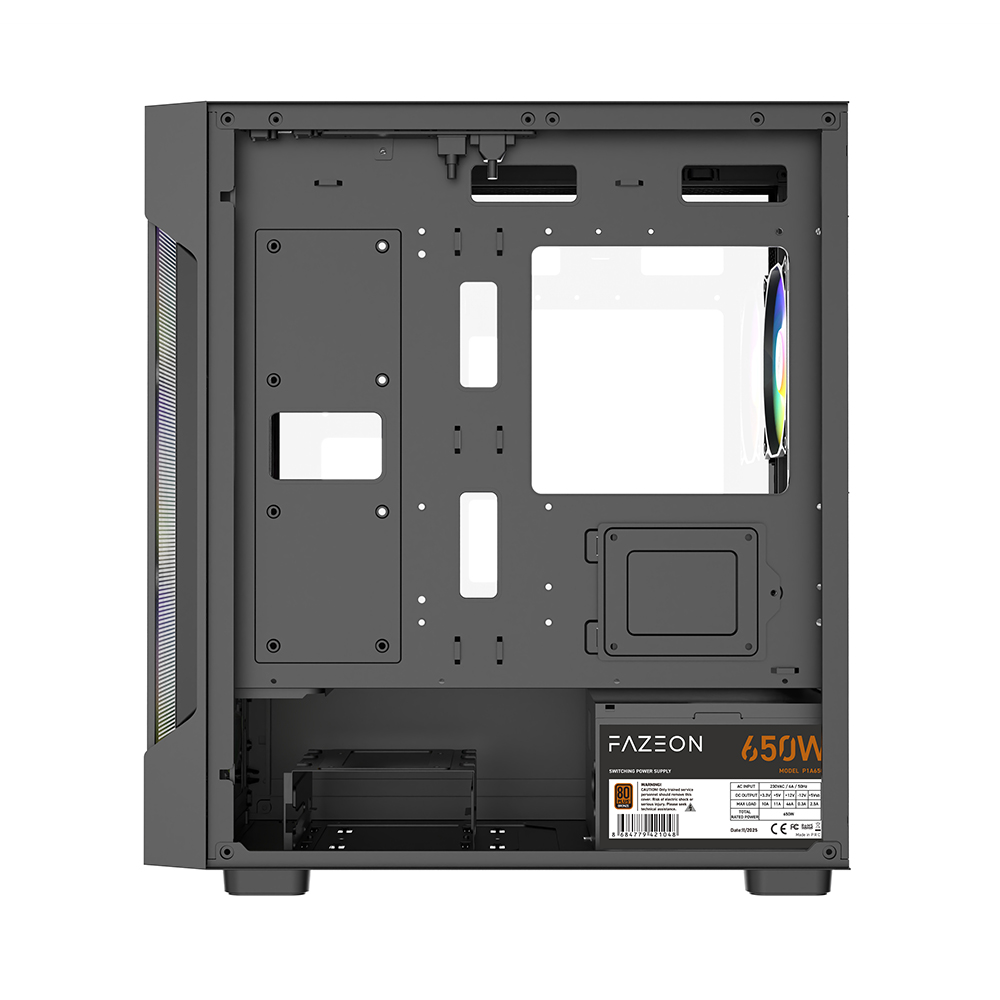

Integrated Power Solution – Comes pre-equipped with a reliable 650W 80+ Bronze power supply.
Vivid Illumination – Four rainbow LED fans provide colorful lighting without the need for external RGB control.

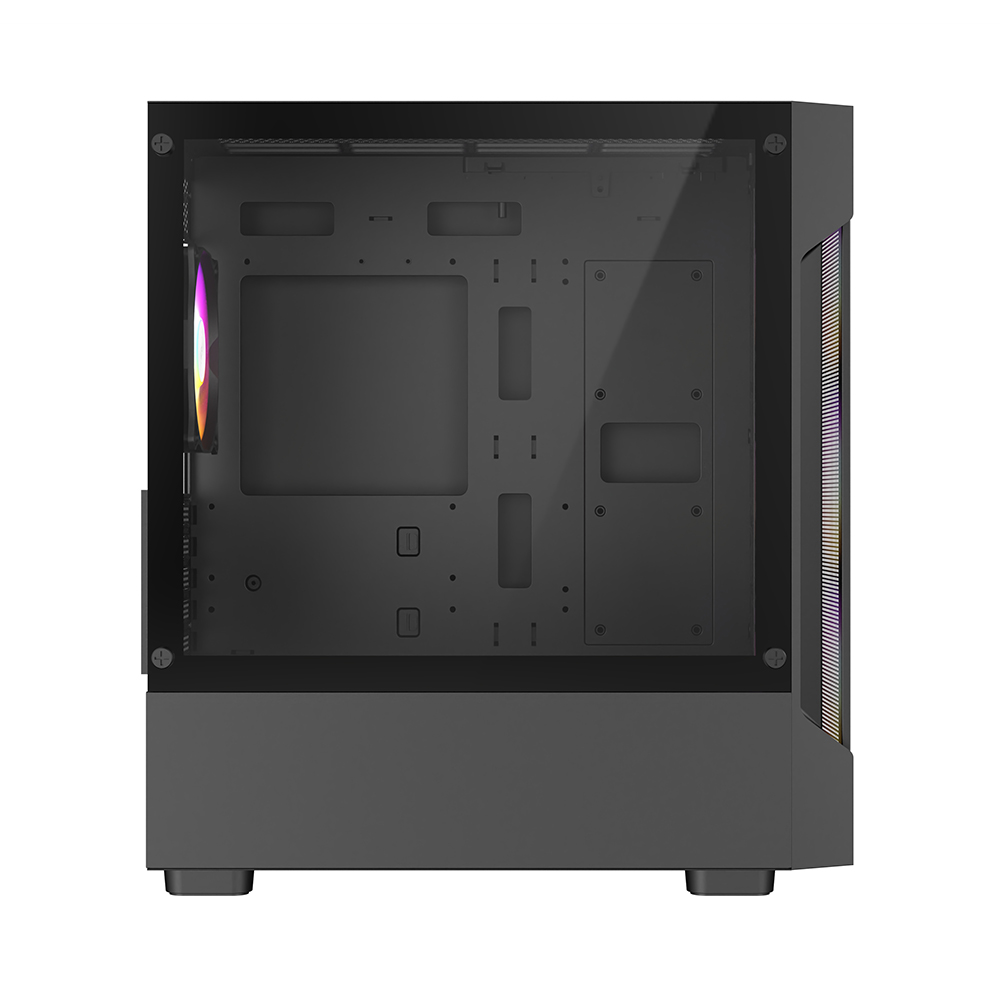

Clear Showcase – Full-sized tempered glass side panel to elegantly display your components.
Compact Compatibility – Designed for Micro-ATX and Mini-ITX builds with efficient space usage.
Modern Connectivity – Equipped with USB 3.0 port for fast and convenient front-panel access.

Optimized Airflow

F1 is designed for optimal cooling efficiency, featuring a mesh front panel that enhances airflow while maintaining a sleek look. With support for multiple fans and liquid cooling solutions, your system stays cool even under heavy loads. Whether you’re gaming for hours or pushing your hardware to its limits, the superior ventilation ensures peak performance without overheating.

Spacious Interior

F1 offers a generously sized interior, providing ample space for high-performance components. It supports large GPUs, multiple storage drives, and liquid cooling radiators, ensuring flexibility for powerful builds. Whether you’re assembling a high-end gaming rig or a workstation, the spacious layout allows for easy cable management and future upgrades.
